Cummins success in the marine market began right at the start. The first successful engine we ever designed and built was for boats, and we didn't stop there. In fact, more than half of the company's total engine production between 1919 and 1934 was built for marine applications.
Cummins Marine powers gill netters and ferries, yachts, tugboats, fishing boats, fire boats, seiners, crew boats...All over the world.
Advantage
1. Low investment costs and operating costs of the combination of
2. The efficient use of primary energy, so as to realize low energy consumption
3. for a long period of time convenient maintenance cycle and maintenance to ensure the further cost saving
4. High energy conversion rate
5. For low concentration of methane gas, mixture two-stage cooling to ensure the maximum output power
6. Through a high standard of safe and reliable control and monitor implementation
7. The ideal combustion, and at the same time maximize the protection of engine
8. Simple condition maintenance control and monitoring function of the system
Typical case

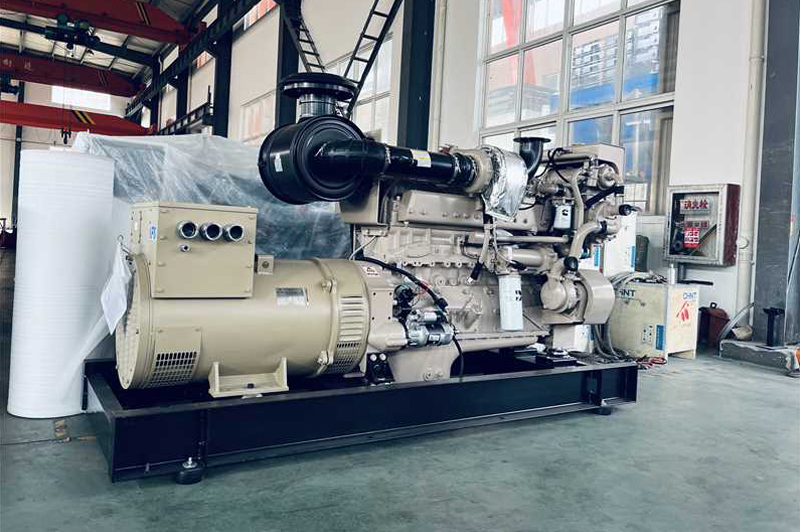

1. Production details of Cummins marine open diesel generator
Kaihua Power’s Cummins marine open diesel generator consists of Cummins marine diesel engine, Stamford/Leroy Somer or equivalent brands alternator, Deepsea controller , mild temperature or tropical type radiator, float charger, circuit breaker, heavy duty steel fabricated base frame, starting batteries, muffler, silencer, vibration absorber.
Production cycle of Deutz open diesel generator: prodution material examining drawing cutting bending welding sand blasting powder spraying assembling commissioning full load testingbench testing carried by CCS
Kaihua Power combines advanced automatic manufacturing facilities such as CNC laser cutting machine, CNC bending machine, punch machine as well as an advanced testing center capable of testing gensets in paralleling running up to 3000kw in total at one time.
2. Product qualification of marine diesel generator
3. Delivery, shipping and service of marine diesel generator
4. FAQ
Q:What is your MOQ, payment method, delivery time?
A : Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering.
Or 100% L/C, Delivery period normally will be 5~15 working days after receiving customers' deposit.
Q: What’s the warranty period?
A: The warranty period of MTU open type diesel generator can be 1 year or 1000h, subject to the earlier one. Kaihua power can accept and reply customer’s complaints within 24 hours. Technical instructions, defective spare parts exchanges can be available form Kaihua Power directly. Further to the defective main parts of diesel engine, Kaihua Power will be able to contact the nearest service point of MTU for customers and claim the warranty to MTU, in which way to convenient customer’s warranty experience.
A warranty certificate issued by Kaihua Power is available along with the gensets. Kaihua Power can provide overseas site service.
Q: Can you offer parts to us if we need?
A: Yes,we can offer parts to you at any time,not limited in warranty time.usually the parts can be sent out during 7 working days.
Q: What is the difference between an open type diesel generator and a silent type diesel generator?
A: An open type diesel generator is less weather-proof compared with silent diesel generator. Open type diesel generator is more suitable for adapting inside the equipment room, where customers can design the layout of gensets together with other facilities such as fuel system, exhaust system, cables arrangements.
Silent type is more convenient in installation. It is more suitable for semi-outdoor and outdoor conditions with noise level attenuated to 70~75db(A) at 7m. It also is a more likely option where requires silent environment such as hotel, hospital, airport, resorts, residential, restaurants, etc.
Q: Is a third party inspection report available before shipping the generator sets?
A: Kaihua Power has got the SGS report for its fabrication base. For countries that need a third party inspection report, Kaihua Power is capable of supplying SGS, BV, CCIC pre-shipment inspection certificate. Certificates issued by Chamber of Commerce are available on request. CCS certificate for the whole genset is available at cost.
Cummins success in the marine market began right at the start. The first successful engine we ever designed and built was for boats, and we didn't stop there. In fact, more than half of the company's total engine production between 1919 and 1934 was built for marine applications.
Cummins Marine powers gill netters and ferries, yachts, tugboats, fishing boats, fire boats, seiners, crew boats...All over the world.
Advantage
1. Low investment costs and operating costs of the combination of
2. The efficient use of primary energy, so as to realize low energy consumption
3. for a long period of time convenient maintenance cycle and maintenance to ensure the further cost saving
4. High energy conversion rate
5. For low concentration of methane gas, mixture two-stage cooling to ensure the maximum output power
6. Through a high standard of safe and reliable control and monitor implementation
7. The ideal combustion, and at the same time maximize the protection of engine
8. Simple condition maintenance control and monitoring function of the system
Typical case
1. Production details of Cummins marine open diesel generator
Kaihua Power’s Cummins marine open diesel generator consists of Cummins marine diesel engine, Stamford/Leroy Somer or equivalent brands alternator, Deepsea controller , mild temperature or tropical type radiator, float charger, circuit breaker, heavy duty steel fabricated base frame, starting batteries, muffler, silencer, vibration absorber.
Production cycle of Deutz open diesel generator: prodution material examining drawing cutting bending welding sand blasting powder spraying assembling commissioning full load testingbench testing carried by CCS
Kaihua Power combines advanced automatic manufacturing facilities such as CNC laser cutting machine, CNC bending machine, punch machine as well as an advanced testing center capable of testing gensets in paralleling running up to 3000kw in total at one time.
2. Product qualification of marine diesel generator
3. Delivery, shipping and service of marine diesel generator
4. FAQ
Q:What is your MOQ, payment method, delivery time?
A : Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering.
Or 100% L/C, Delivery period normally will be 5~15 working days after receiving customers' deposit.
Q: What’s the warranty period?
A: The warranty period of MTU open type diesel generator can be 1 year or 1000h, subject to the earlier one. Kaihua power can accept and reply customer’s complaints within 24 hours. Technical instructions, defective spare parts exchanges can be available form Kaihua Power directly. Further to the defective main parts of diesel engine, Kaihua Power will be able to contact the nearest service point of MTU for customers and claim the warranty to MTU, in which way to convenient customer’s warranty experience.
A warranty certificate issued by Kaihua Power is available along with the gensets. Kaihua Power can provide overseas site service.
Q: Can you offer parts to us if we need?
A: Yes,we can offer parts to you at any time,not limited in warranty time.usually the parts can be sent out during 7 working days.
Q: What is the difference between an open type diesel generator and a silent type diesel generator?
A: An open type diesel generator is less weather-proof compared with silent diesel generator. Open type diesel generator is more suitable for adapting inside the equipment room, where customers can design the layout of gensets together with other facilities such as fuel system, exhaust system, cables arrangements.
Silent type is more convenient in installation. It is more suitable for semi-outdoor and outdoor conditions with noise level attenuated to 70~75db(A) at 7m. It also is a more likely option where requires silent environment such as hotel, hospital, airport, resorts, residential, restaurants, etc.
Q: Is a third party inspection report available before shipping the generator sets?
A: Kaihua Power has got the SGS report for its fabrication base. For countries that need a third party inspection report, Kaihua Power is capable of supplying SGS, BV, CCIC pre-shipment inspection certificate. Certificates issued by Chamber of Commerce are available on request. CCS certificate for the whole genset is available at cost.
Cummins marine generator (main type) 50HZ/3p/400V model list (OPEN TYPE)
Kaihua Diesel Generator Set Technical Data (OPEN TYPE) | Cummins Marine Engine Technical Data | |||||||
Model | Rated Power | Genset Dimension | Genset Weight | Cummins Engine | Cylinder No. | Bore/Stroke | Fuel Cons. | |
kW | kVa | mm | kg | Model | mm | L/h | ||
CCFJ35JW | 35 | 43.8 | 1670*850*1270 | 800 | 4BTA3.9-GM47 | 4 | 102/120 | 8.75 |
CCFJ40JW | 40 | 50 | 1760*850*1270 | 900 | 4BTA3.9-GM47 | 4 | 102/120 | 10.02 |
CCFJ50JW | 50 | 63 | 1980*850*1300 | 1000 | 6BT5.9-GM83 | 6 | 102/120 | 12.47 |
CCFJ64JW | 64 | 80 | 1980*850*1300 | 1100 | 6BT5.9-GM83 | 6 | 102/120 | 15.96 |
CCFJ75JW | 75 | 93.8 | 1980*850*1300 | 1250 | 6BTA5.9-GM100 | 6 | 102/120 | 18.71 |
CCFJ90JW | 90 | 113 | 2080*895*1300 | 1300 | 6CT8.3-GM115 | 6 | 114/135 | 22.45 |
CCFJ100JW | 100 | 125 | 2140*810*1360 | 1650 | 6CT8.3-GM115 | 6 | 114/135 | 24.94 |
CCFJ120JW | 120 | 150 | 2180*810*1360 | 1700 | 6CTA8.3-GM155 | 6 | 114/135 | 29.93 |
CCFJ150JW | 150 | 188 | 2685*995*1790 | 1750 | NT855-DM | 6 | 140/152 | 36.71 |
CCFJ175JW | 175 | 218.8 | 2300*800*1670 | 1850 | 6LTAA8.9-GM200 | 6 | 140/152 | 43.75 |
CCFJ200JW | 200 | 250 | 2760*995*1790 | 3100 | NTA855-DM | 6 | 140/152 | 48.94 |
CCFJ250JW | 250 | 313 | 2760*995*1790 | 3180 | NTA855-DM | 6 | 159/159 | 61.18 |
CCFJ280JW | 280 | 350 | 2995*995*1790 | 3250 | NTA855-DM | 6 | 159/159 | 68.52 |
CCFJ300JW | 300 | 375 | 3170*1000*1905 | 3750 | KTA19-DM | 6 | 159/159 | 74.7 |
CCFJ320JW | 320 | 400 | 3170*1000*1905 | 3750 | K19-DM | 6 | 159/159 | 80 |
CCFJ350JW | 350 | 438 | 3280*1000*1905 | 3800 | KTA19-DM | 6 | 159/159 | 87.5 |
CCFJ360JW | 360 | 450 | 3280*1000*1905 | 3900 | K19-DM | 6 | 159/159 | 90 |
CCFJ400JW | 400 | 500 | 3280*1000*1905 | 3950 | KTA19-DM | 6 | 159/159 | 96.3 |
CCFJ500JW | 500 | 625 | 3950*1500*2500 | 6200 | KT38-DM | 6 | 159/159 | 125 |
CCFJ600JW | 600 | 750 | 4100*1500*2500 | 6350 | KTA38-DM | 12 | 159/159 | 150.3 |
CCFJ650JW | 650 | 813 | 4100*1500*2500 | 6500 | KT38-DM | 12 | 159/159 | 146.3 |
CCFJ700JW | 700 | 875 | 4100*1500*2500 | 6600 | KTA38-DM | 12 | 159/159 | 171.2 |
CCFJ800JW | 800 | 1000 | 4100*1500*2500 | 7000 | KTA38-DM | 12 | 159/159 | 188.1 |
CCFJ900JW | 900 | 1125 | 4250*1650*2500 | 7400 | QSK38-DM | 12 | 159/159 | 202.5 |
CCFJ1000JW | 1000 | 1250 | 4300*1600*2600 | 8000 | K50-DM | 12 | 159/159 | 225 |
Cummins marine generator (main type) 50HZ/3p/400V model list (OPEN TYPE)
Kaihua Diesel Generator Set Technical Data (OPEN TYPE) | Cummins Marine Engine Technical Data | |||||||
Model | Rated Power | Genset Dimension | Genset Weight | Cummins Engine | Cylinder No. | Bore/Stroke | Fuel Cons. | |
kW | kVa | mm | kg | Model | mm | L/h | ||
CCFJ35JW | 35 | 43.8 | 1670*850*1270 | 800 | 4BTA3.9-GM47 | 4 | 102/120 | 8.75 |
CCFJ40JW | 40 | 50 | 1760*850*1270 | 900 | 4BTA3.9-GM47 | 4 | 102/120 | 10.02 |
CCFJ50JW | 50 | 63 | 1980*850*1300 | 1000 | 6BT5.9-GM83 | 6 | 102/120 | 12.47 |
CCFJ64JW | 64 | 80 | 1980*850*1300 | 1100 | 6BT5.9-GM83 | 6 | 102/120 | 15.96 |
CCFJ75JW | 75 | 93.8 | 1980*850*1300 | 1250 | 6BTA5.9-GM100 | 6 | 102/120 | 18.71 |
CCFJ90JW | 90 | 113 | 2080*895*1300 | 1300 | 6CT8.3-GM115 | 6 | 114/135 | 22.45 |
CCFJ100JW | 100 | 125 | 2140*810*1360 | 1650 | 6CT8.3-GM115 | 6 | 114/135 | 24.94 |
CCFJ120JW | 120 | 150 | 2180*810*1360 | 1700 | 6CTA8.3-GM155 | 6 | 114/135 | 29.93 |
CCFJ150JW | 150 | 188 | 2685*995*1790 | 1750 | NT855-DM | 6 | 140/152 | 36.71 |
CCFJ175JW | 175 | 218.8 | 2300*800*1670 | 1850 | 6LTAA8.9-GM200 | 6 | 140/152 | 43.75 |
CCFJ200JW | 200 | 250 | 2760*995*1790 | 3100 | NTA855-DM | 6 | 140/152 | 48.94 |
CCFJ250JW | 250 | 313 | 2760*995*1790 | 3180 | NTA855-DM | 6 | 159/159 | 61.18 |
CCFJ280JW | 280 | 350 | 2995*995*1790 | 3250 | NTA855-DM | 6 | 159/159 | 68.52 |
CCFJ300JW | 300 | 375 | 3170*1000*1905 | 3750 | KTA19-DM | 6 | 159/159 | 74.7 |
CCFJ320JW | 320 | 400 | 3170*1000*1905 | 3750 | K19-DM | 6 | 159/159 | 80 |
CCFJ350JW | 350 | 438 | 3280*1000*1905 | 3800 | KTA19-DM | 6 | 159/159 | 87.5 |
CCFJ360JW | 360 | 450 | 3280*1000*1905 | 3900 | K19-DM | 6 | 159/159 | 90 |
CCFJ400JW | 400 | 500 | 3280*1000*1905 | 3950 | KTA19-DM | 6 | 159/159 | 96.3 |
CCFJ500JW | 500 | 625 | 3950*1500*2500 | 6200 | KT38-DM | 6 | 159/159 | 125 |
CCFJ600JW | 600 | 750 | 4100*1500*2500 | 6350 | KTA38-DM | 12 | 159/159 | 150.3 |
CCFJ650JW | 650 | 813 | 4100*1500*2500 | 6500 | KT38-DM | 12 | 159/159 | 146.3 |
CCFJ700JW | 700 | 875 | 4100*1500*2500 | 6600 | KTA38-DM | 12 | 159/159 | 171.2 |
CCFJ800JW | 800 | 1000 | 4100*1500*2500 | 7000 | KTA38-DM | 12 | 159/159 | 188.1 |
CCFJ900JW | 900 | 1125 | 4250*1650*2500 | 7400 | QSK38-DM | 12 | 159/159 | 202.5 |
CCFJ1000JW | 1000 | 1250 | 4300*1600*2600 | 8000 | K50-DM | 12 | 159/159 | 225 |
Cummins marine generator (Emergency type) 50HZ/3p/400V model list (OPEN TYPE)
Kaihua Diesel Generator Set Technical Data (OPEN TYPE) | Cummins Marine Engine Technical Data | |||||||
Model | Rated Power | Genset Dimension | Genset Weight | Cummins Engine | Cylinder No. | Bore/Stroke | Fuel Cons. | |
kW | kVa | mm | kg | Model | mm | L/h | ||
CCFJ30JW | 30 | 38 | 1750*750*1280 | 950 | 4BTA3.9-GM47 | 4 | 102/120 | 7.25 |
CCFJ40JW | 40 | 50 | 1810*750*1280 | 1000 | 4BTA3.9-GM47 | 4 | 102/120 | 10.02 |
CCFJ50JW | 50 | 63 | 2090*850*1280 | 1100 | 6BT5.9-GM83 | 6 | 102/120 | 12.47 |
CCFJ64JW | 64 | 80 | 2110*850*1280 | 1370 | 6BT5.9-GM83 | 6 | 102/120 | 15.93 |
CCFJ75JW | 75 | 93.8 | 2200*850*1300 | 1450 | 6BTAA5.9-GM115 | 6 | 102/120 | 21.52 |
CCFJ90JW | 90 | 113 | 2200*850*1300 | 1500 | 6BTAA5.9-GM115 | 6 | 102/120 | 22.45 |
CCFJ100JW | 100 | 125 | 2200*850*1300 | 1550 | 6BTAA5.9-GM115 | 6 | 102/120 | 24.94 |
CCFJ120JW | 120 | 150 | 2300*860*1390 | 2500 | 6CTA8.3-GM155 | 6 | 114/135 | 29.93 |
CCFJ150JW | 150 | 188 | 2890*1220*1750 | 2600 | 6LTAA8.9-GM200 | 6 | 114/145 | 36.71 |
CCFJ200JW | 200 | 250 | 2950*1220*1750 | 2750 | NTA855-DM | 6 | 140/152 | 48.94 |
CCFJ250JW | 250 | 313 | 3010*1500*1750 | 2850 | NTA855-DM | 6 | 140/152 | 61.18 |
CCFJ300JW | 300 | 375 | 3550*1500*2350 | 3100 | KTA19-DM | 6 | 159/159 | 72.71 |
CCFJ350JW | 350 | 438 | 3550*1500*2350 | 3600 | KTA19-DM | 6 | 159/159 | 84.82 |
CCFJ400JW | 400 | 500 | 3550*1500*2350 | 3800 | KTA19-DM | 6 | 159/159 | 96.74 |
CCFJ500JW | 500 | 625 | 4800*1780*2350 | 7200 | KT38-DM | 12 | 159/159 | 121.76 |
Cummins marine generator (Emergency type) 50HZ/3p/400V model list (OPEN TYPE)
Kaihua Diesel Generator Set Technical Data (OPEN TYPE) | Cummins Marine Engine Technical Data | |||||||
Model | Rated Power | Genset Dimension | Genset Weight | Cummins Engine | Cylinder No. | Bore/Stroke | Fuel Cons. | |
kW | kVa | mm | kg | Model | mm | L/h | ||
CCFJ30JW | 30 | 38 | 1750*750*1280 | 950 | 4BTA3.9-GM47 | 4 | 102/120 | 7.25 |
CCFJ40JW | 40 | 50 | 1810*750*1280 | 1000 | 4BTA3.9-GM47 | 4 | 102/120 | 10.02 |
CCFJ50JW | 50 | 63 | 2090*850*1280 | 1100 | 6BT5.9-GM83 | 6 | 102/120 | 12.47 |
CCFJ64JW | 64 | 80 | 2110*850*1280 | 1370 | 6BT5.9-GM83 | 6 | 102/120 | 15.93 |
CCFJ75JW | 75 | 93.8 | 2200*850*1300 | 1450 | 6BTAA5.9-GM115 | 6 | 102/120 | 21.52 |
CCFJ90JW | 90 | 113 | 2200*850*1300 | 1500 | 6BTAA5.9-GM115 | 6 | 102/120 | 22.45 |
CCFJ100JW | 100 | 125 | 2200*850*1300 | 1550 | 6BTAA5.9-GM115 | 6 | 102/120 | 24.94 |
CCFJ120JW | 120 | 150 | 2300*860*1390 | 2500 | 6CTA8.3-GM155 | 6 | 114/135 | 29.93 |
CCFJ150JW | 150 | 188 | 2890*1220*1750 | 2600 | 6LTAA8.9-GM200 | 6 | 114/145 | 36.71 |
CCFJ200JW | 200 | 250 | 2950*1220*1750 | 2750 | NTA855-DM | 6 | 140/152 | 48.94 |
CCFJ250JW | 250 | 313 | 3010*1500*1750 | 2850 | NTA855-DM | 6 | 140/152 | 61.18 |
CCFJ300JW | 300 | 375 | 3550*1500*2350 | 3100 | KTA19-DM | 6 | 159/159 | 72.71 |
CCFJ350JW | 350 | 438 | 3550*1500*2350 | 3600 | KTA19-DM | 6 | 159/159 | 84.82 |
CCFJ400JW | 400 | 500 | 3550*1500*2350 | 3800 | KTA19-DM | 6 | 159/159 | 96.74 |
CCFJ500JW | 500 | 625 | 4800*1780*2350 | 7200 | KT38-DM | 12 | 159/159 | 121.76 |
