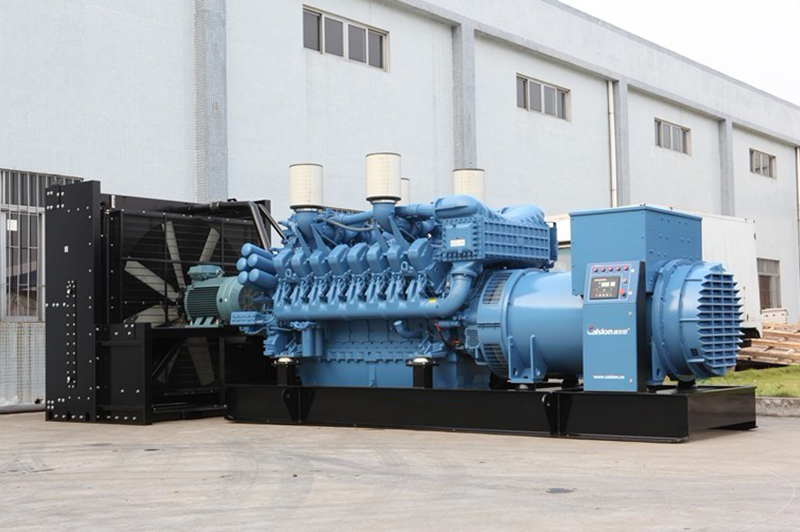

MTU diesel generator open type ISO9001, CE certified with at least 1 year warranty
1. Product Introduction of the MTU open diesel generator
(1) The origin of MTU.
MTU is the diesel propulsion systems division of Germany's daimlerchrysler group. It is one of the world's leading heavy-duty diesel engine manufacturers and enjoys the highest reputation in the world
(2) MTU key features.
1 Advanced and complete engine electronic management system - MDEC system
MDEC has the functions of high water temperature, low oil pressure, low water level, high oil temperature, too low water level, overspeed protection and alarm. Fault code display: can monitor the operation of diesel engine in real time, can provide effective self-diagnosis function.
2 Advanced and perfect fuel injection system - common rail fuel injection system
Stable operation, good speed stability; Low emission, low fuel consumption in all power ranges, excellent acceleration performance and load characteristics; High fuel temperature will not affect power.
③Advanced and sophisticated turbocharging and cooling technologies - sequential turbochargers and dual circuit cooling water circulation systems
The advanced dual-circuit cooling water circulation system keeps the engine in thermal equilibrium and ensures the high reliability of the engine.
3. Power generation applications of MTU open diesel generator sets
Data Centers Medical Institutions Airport commercial plaza Hotel
Farm Industrial production Power plant A musement park Refuse landfill
4. Production details of MTU open diesel generator
Production cycle of MTU open diesel generator: prodution material examining drawing cutting bending welding sand blasting powder spraying assembling commissioning full load testing
KAIHUA combines advanced automatic manufacturing facilities such as CNC laser cutting machine, CNC bending machine, punch machine as well as advanced testing center capable of testing gensets in paralleling running up to 3000kw in total at one time.
5. MTU Development in China
MTU Yuchai Power Co. Ltd established in 2017 – a joint venture between MTU Friedrichshafen and the Guangxi Yuchai Machinery Company Ltd. (GYMCL) to build large mtu-brand diesel engines in China. The mission of the joint venture, based in Yulin in southern China where GYMCL’s headquarters is located, will be to build engines of version 03 of mtu's highly successful Series 4000. This unit is suitable for use in the oil and gas and power generation industries.
MTU Suzhou opened its first facility in Suzhou 27 years ago to provide customers in China with faster and more efficient after-sale services in applications such as railway, marine and power generation. Suzhou later became the third production base for mtu engines globally at that time, responsible for the assembly of mtu Series 2000 gendrive engines. Branches in Beijing, Shanghai and Dalian were also established gradually. In October 2021, the former MTU Engineering (Suzhou) Co Ltd was renamed Rolls-Royce Solutions (Suzhou) Co Ltd.
MTU diesel generator open type ISO9001, CE certified with at least 1 year warranty
1. Product Introduction of the MTU open diesel generator
(1) The origin of MTU.
MTU is the diesel propulsion systems division of Germany's daimlerchrysler group. It is one of the world's leading heavy-duty diesel engine manufacturers and enjoys the highest reputation in the world
(2) MTU key features.
1 Advanced and complete engine electronic management system - MDEC system
MDEC has the functions of high water temperature, low oil pressure, low water level, high oil temperature, too low water level, overspeed protection and alarm. Fault code display: can monitor the operation of diesel engine in real time, can provide effective self-diagnosis function.
2 Advanced and perfect fuel injection system - common rail fuel injection system
Stable operation, good speed stability; Low emission, low fuel consumption in all power ranges, excellent acceleration performance and load characteristics; High fuel temperature will not affect power.
③Advanced and sophisticated turbocharging and cooling technologies - sequential turbochargers and dual circuit cooling water circulation systems
The advanced dual-circuit cooling water circulation system keeps the engine in thermal equilibrium and ensures the high reliability of the engine.
3. Power generation applications of MTU open diesel generator sets
Data Centers Medical Institutions Airport commercial plaza Hotel
Farm Industrial production Power plant A musement park Refuse landfill
4. Production details of MTU open diesel generator
Production cycle of MTU open diesel generator: prodution material examining drawing cutting bending welding sand blasting powder spraying assembling commissioning full load testing
KAIHUA combines advanced automatic manufacturing facilities such as CNC laser cutting machine, CNC bending machine, punch machine as well as advanced testing center capable of testing gensets in paralleling running up to 3000kw in total at one time.
5. MTU Development in China
MTU Yuchai Power Co. Ltd established in 2017 – a joint venture between MTU Friedrichshafen and the Guangxi Yuchai Machinery Company Ltd. (GYMCL) to build large mtu-brand diesel engines in China. The mission of the joint venture, based in Yulin in southern China where GYMCL’s headquarters is located, will be to build engines of version 03 of mtu's highly successful Series 4000. This unit is suitable for use in the oil and gas and power generation industries.
MTU Suzhou opened its first facility in Suzhou 27 years ago to provide customers in China with faster and more efficient after-sale services in applications such as railway, marine and power generation. Suzhou later became the third production base for mtu engines globally at that time, responsible for the assembly of mtu Series 2000 gendrive engines. Branches in Beijing, Shanghai and Dalian were also established gradually. In October 2021, the former MTU Engineering (Suzhou) Co Ltd was renamed Rolls-Royce Solutions (Suzhou) Co Ltd.
Kaihua Diesel Generator Set Technical Data (OPEN TYPE) | MTU Engine Technical Data | |||||||||
Model | Standby Power | Prime Power | Genset Dimension | Genset Weight | MTU Engine | Displacement | Cylinder No. | Bore / Stroke | ||
kVA | kWe | kVA | kWe | mm | kg | Model | L | mm | ||
KH-360GF | 500 | 400 | 450 | 360 | 3095x1590x1970 | 4065 | 10V1600G10F | 17.5 | 10V | 122/150 |
KH-400GF | 550 | 440 | 500 | 400 | 3095x1590x1970 | 4065 | 10V1600G20F | 17.5 | 10V | 122/150 |
KH-480GF | 581 | 528 | 600 | 480 | 3300x1590x1970 | 4100 | 12V1600G10F | 21.0 | 12V | 122/150 |
KH-520GF | 715 | 572 | 650 | 520 | 3300x1590x1970 | 4100 | 12V2000G25 | 23.88 | 12V | 130/150 |
KH-600GF | 825 | 660 | 750 | 600 | 4200x1650x2200 | 7000 | 12V2000G65 | 23.88 | 12V | 130/150 |
KH-640GF | 880 | 704 | 800 | 640 | 4200x1650x2200 | 7000 | 12V2000G65 | 23.88 | 12V | 130/150 |
KH-728GF | 1001 | 801 | 910 | 728 | 4500x2000x2300 | 7850 | 16V2000G25 | 31.84 | 16V | 130/150 |
KH-800GF | 1100 | 880 | 1000 | 800 | 4500x2000x2300 | 7850 | 16V2000G65 | 31.84 | 16V | 130/150 |
KH-910GF | 1251 | 1001 | 1138 | 910 | 4750x2000x2400 | 9000 | 18V2000G65 | 35.82 | 18V | 130/150 |
KH-1000GF | 1375 | 1100 | 1250 | 1000 | 4750x2000x2400 | 9000 | 18V2000G26F | 40.2 | 18V | 135/156 |
KH-1100GF | 1512 | 1210 | 1375 | 1100 | 6150x2150x2400 | 13000 | 12V4000G23R | 57.2 | 12V | 171/210 |
KH-1320GF | 1812 | 1450 | 1650 | 1320 | 6150x2150x2400 | 13500 | 12V4000G23 | 57.2 | 12V | 171/210 |
KH-1470GF | 2012 | 1610 | 1837 | 1470 | 6500x2600x2500 | 17600 | 12V4000G63 | 76.3 | 16V | 171/210 |
KH-1670GF | 2250 | 1800 | 2087 | 1670 | 6550x2600x2500 | 17600 | 16V4000G23 | 76.3 | 16V | 171/210 |
KH-1800GF | 2500 | 2000 | 2250 | 1800 | 6550x2600x2500 | 18000 | 16V4000G63 | 76.3 | 16V | 171/210 |
KH-2000GF | 2750 | 2200 | 2500 | 2000 | 8300x2950x2550 | 24000 | 20V4000G23 | 95.4 | 20V | 171/210 |
KH-2200GF | 3080 | 2464 | 2800 | 2240 | 8300x2950x2550 | 24500 | 20V4000G63 | 95.4 | 20V | 171/210 |
KH-2400GF | 3300 | 2640 | 3000 | 2400 | 8300x2950x2550 | 25000 | 20V4000G63L | 95.4 | 20V | 171/210 |
Kaihua Diesel Generator Set Technical Data (OPEN TYPE) | MTU Engine Technical Data | |||||||||
Model | Standby Power | Prime Power | Genset Dimension | Genset Weight | MTU Engine | Displacement | Cylinder No. | Bore / Stroke | ||
kVA | kWe | kVA | kWe | mm | kg | Model | L | mm | ||
KH-360GF | 500 | 400 | 450 | 360 | 3095x1590x1970 | 4065 | 10V1600G10F | 17.5 | 10V | 122/150 |
KH-400GF | 550 | 440 | 500 | 400 | 3095x1590x1970 | 4065 | 10V1600G20F | 17.5 | 10V | 122/150 |
KH-480GF | 581 | 528 | 600 | 480 | 3300x1590x1970 | 4100 | 12V1600G10F | 21.0 | 12V | 122/150 |
KH-520GF | 715 | 572 | 650 | 520 | 3300x1590x1970 | 4100 | 12V2000G25 | 23.88 | 12V | 130/150 |
KH-600GF | 825 | 660 | 750 | 600 | 4200x1650x2200 | 7000 | 12V2000G65 | 23.88 | 12V | 130/150 |
KH-640GF | 880 | 704 | 800 | 640 | 4200x1650x2200 | 7000 | 12V2000G65 | 23.88 | 12V | 130/150 |
KH-728GF | 1001 | 801 | 910 | 728 | 4500x2000x2300 | 7850 | 16V2000G25 | 31.84 | 16V | 130/150 |
KH-800GF | 1100 | 880 | 1000 | 800 | 4500x2000x2300 | 7850 | 16V2000G65 | 31.84 | 16V | 130/150 |
KH-910GF | 1251 | 1001 | 1138 | 910 | 4750x2000x2400 | 9000 | 18V2000G65 | 35.82 | 18V | 130/150 |
KH-1000GF | 1375 | 1100 | 1250 | 1000 | 4750x2000x2400 | 9000 | 18V2000G26F | 40.2 | 18V | 135/156 |
KH-1100GF | 1512 | 1210 | 1375 | 1100 | 6150x2150x2400 | 13000 | 12V4000G23R | 57.2 | 12V | 171/210 |
KH-1320GF | 1812 | 1450 | 1650 | 1320 | 6150x2150x2400 | 13500 | 12V4000G23 | 57.2 | 12V | 171/210 |
KH-1470GF | 2012 | 1610 | 1837 | 1470 | 6500x2600x2500 | 17600 | 12V4000G63 | 76.3 | 16V | 171/210 |
KH-1670GF | 2250 | 1800 | 2087 | 1670 | 6550x2600x2500 | 17600 | 16V4000G23 | 76.3 | 16V | 171/210 |
KH-1800GF | 2500 | 2000 | 2250 | 1800 | 6550x2600x2500 | 18000 | 16V4000G63 | 76.3 | 16V | 171/210 |
KH-2000GF | 2750 | 2200 | 2500 | 2000 | 8300x2950x2550 | 24000 | 20V4000G23 | 95.4 | 20V | 171/210 |
KH-2200GF | 3080 | 2464 | 2800 | 2240 | 8300x2950x2550 | 24500 | 20V4000G63 | 95.4 | 20V | 171/210 |
KH-2400GF | 3300 | 2640 | 3000 | 2400 | 8300x2950x2550 | 25000 | 20V4000G63L | 95.4 | 20V | 171/210 |
Kaihua Diesel Generator Set Technical Data (OPEN TYPE) | MTU Engine Technical Data | |||||||||
Model | Standby Power | Prime Power | Genset Dimension | Genset Weight | MTU Engine | DISP | Cylinder No. | Bore / Stroke | ||
kVA | kWe | kVA | kWe | mm | kg | Model | L | mm | ||
KH-640GF | 880 | 704 | 800 | 640 | 4200x1650x2200 | 7000 | 12V2000G45 | 23.88 | 12V | 130/150 |
KH-728GF | 1001 | 801 | 910 | 728 | 4500x2000x2300 | 7850 | 12V2000G85 | 31.84 | 16V | 130/150 |
KH-825GF | 1134 | 908 | 1031 | 825 | 4500x2000x2300 | 7850 | 16V2000G45 | 31.84 | 16V | 130/150 |
KH-910GF | 1251 | 1001 | 1138 | 910 | 4750x2000x2400 | 9000 | 16V2000G85 | 35.82 | 18V | 130/150 |
KH-1075GF | 1500 | 1200 | 1345 | 1075 | 4750x2000x2400 | 9500 | 18V2000G85 | 40.2 | 18V | 135/156 |
KH-1400GF | 1925 | 1540 | 1750 | 1400 | 6150x2600x2500 | 14000 | 12V4000G43 | 57.2 | 12V | 171/210 |
KH-1630GF | 2250 | 1800 | 2045 | 1630 | 6500x2600x2500 | 17600 | 12V4000G83 | 76.3 | 16V | 171/210 |
KH-1890GF | 2600 | 2080 | 2362 | 1890 | 6550x2600x2500 | 17600 | 16V4000G43 | 76.3 | 16V | 171/210 |
KH-2130GF | 2750 | 2934 | 2663 | 2130 | 8300x2950x2550 | 24000 | 16V4000G83 | 95.4 | 20V | 171/210 |
KH-2300GF | 3163 | 2530 | 2875 | 2300 | 8300x2950x2550 | 24000 | 20V4000G43 | 95.4 | 20V | 171/210 |
KH-2545GF | 3500 | 2800 | 3181 | 2545 | 8300x2950x2550 | 34000 | 20V4000G83 | 95.4 | 20V | 171/210 |
KH-2810GF | 3862 | 3090 | 3512 | 2810 | 8300x2950x2550 | 36000 | 20V4000G83L | 95.4 | 20V | 171/210 |
Kaihua Diesel Generator Set Technical Data (OPEN TYPE) | MTU Engine Technical Data | |||||||||
Model | Standby Power | Prime Power | Genset Dimension | Genset Weight | MTU Engine | DISP | Cylinder No. | Bore / Stroke | ||
kVA | kWe | kVA | kWe | mm | kg | Model | L | mm | ||
KH-640GF | 880 | 704 | 800 | 640 | 4200x1650x2200 | 7000 | 12V2000G45 | 23.88 | 12V | 130/150 |
KH-728GF | 1001 | 801 | 910 | 728 | 4500x2000x2300 | 7850 | 12V2000G85 | 31.84 | 16V | 130/150 |
KH-825GF | 1134 | 908 | 1031 | 825 | 4500x2000x2300 | 7850 | 16V2000G45 | 31.84 | 16V | 130/150 |
KH-910GF | 1251 | 1001 | 1138 | 910 | 4750x2000x2400 | 9000 | 16V2000G85 | 35.82 | 18V | 130/150 |
KH-1075GF | 1500 | 1200 | 1345 | 1075 | 4750x2000x2400 | 9500 | 18V2000G85 | 40.2 | 18V | 135/156 |
KH-1400GF | 1925 | 1540 | 1750 | 1400 | 6150x2600x2500 | 14000 | 12V4000G43 | 57.2 | 12V | 171/210 |
KH-1630GF | 2250 | 1800 | 2045 | 1630 | 6500x2600x2500 | 17600 | 12V4000G83 | 76.3 | 16V | 171/210 |
KH-1890GF | 2600 | 2080 | 2362 | 1890 | 6550x2600x2500 | 17600 | 16V4000G43 | 76.3 | 16V | 171/210 |
KH-2130GF | 2750 | 2934 | 2663 | 2130 | 8300x2950x2550 | 24000 | 16V4000G83 | 95.4 | 20V | 171/210 |
KH-2300GF | 3163 | 2530 | 2875 | 2300 | 8300x2950x2550 | 24000 | 20V4000G43 | 95.4 | 20V | 171/210 |
KH-2545GF | 3500 | 2800 | 3181 | 2545 | 8300x2950x2550 | 34000 | 20V4000G83 | 95.4 | 20V | 171/210 |
KH-2810GF | 3862 | 3090 | 3512 | 2810 | 8300x2950x2550 | 36000 | 20V4000G83L | 95.4 | 20V | 171/210 |
